EVANNEX HEPA Cabin Air Filter For Tesla Model X 2016-2020

• HEPA Replacement Cabin Air filter for Tesla Model X
• Easy installation
• Custom designed to replace or upgrade your cabin air filter
• Effectively prevent 99.67% of air particles from entering your vehicle

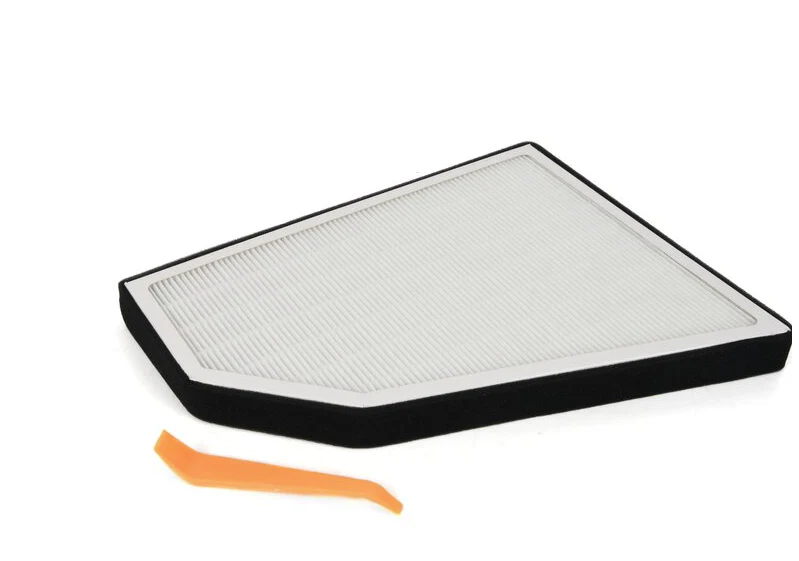

• Includes HEPA cabin air filter and trim removal tool
• High Quality Air Filter is made with HEPA activated carbon filter
• Keep a clean and healthy environment inside your cabin
• Fits All Tesla Model X 2016-2020 / OE Reference 1039042-00-B



Description

The EVANNEX Interior Hepa Cabin Air Filter has been designed to fit the needs of all Model X Owners. Prevent 99.67% of air particles from entering your vehicle. Adding extra protections to your Tesla's cabin.

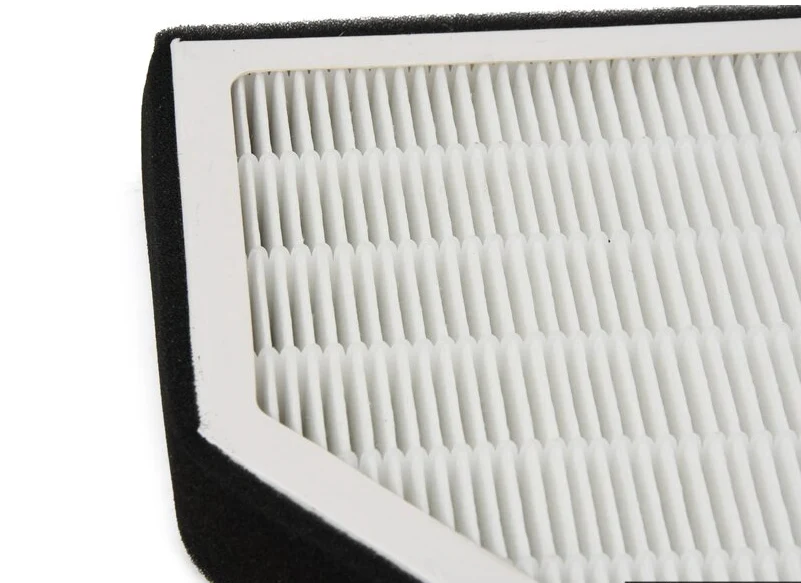

Upgrade or replace your Tesla Model 3 or Model Y cabin air filter with EVANNEX's  HEPA Cabin Air Filter. A high quality air filter made of HEPA activated carbon that have a unique structure, to reduce the air resistance and maximizes the surface area, enhancing the filtering performance.

Specifications

Specification:

HEPA Replacement Cabin Air filter

Effectively prevent 99.67% of air particles from entering your vehicle. Helping you keep a clean and safe environment inside your vehicle.

Materials: High Quality Air Filter is made with HEPA activated carbon filter

Protection: Effectively prevent 99.67% of air particles from entering your vehicle

Fitment: Designed to fit all Tesla Model X 2016-2020

Installation

Installation Instructions

Model X has an air filter that prevents pollen, industrial fallout, road dust, and other particles from entering the cabin through the vents. Tesla recommends replacing these filters every 2 years

1. Turn off the climate control system.
2. Move the front passenger seat fully rearwards.
3. Slowly and gently pull down the footwell cover to release the magnets, then disconnect the electrical harness on the right side of the cover. Set the footwell cover aside.
4. Squeeze the cabin filter door lock to release it, and then remove and set the door aside.
5. Note the direction of air flow printed on the cabin filter. The arrows on the filter should face toward the rear of the vehicle.
6. Slide the filter out of the HVAC module.
7. Ensuring that the arrows on the new filter face toward the rear of the vehicle, insert the new cabin filter into the HVAC module.
8. Slide the cabin filter door onto the HVAC module, and then push the door to lock it. *Note
   Ensure the lock is fully engaged and the door is sealed shut.
9. Position the front passenger footwell cover on the vehicle and connect the electrical harness to the cover.
10. Install the front passenger footwell cover, making sure the magnets (x3) are locked into position.
11. Move the front passenger seat back to its original position.

Installation Video

You can find a detailed installation video here: HEPA Filter Installation
